NETmate 54Mbps무선 노트북용 랜카드
|
|
|
▒
주요특징
▒ |
| |

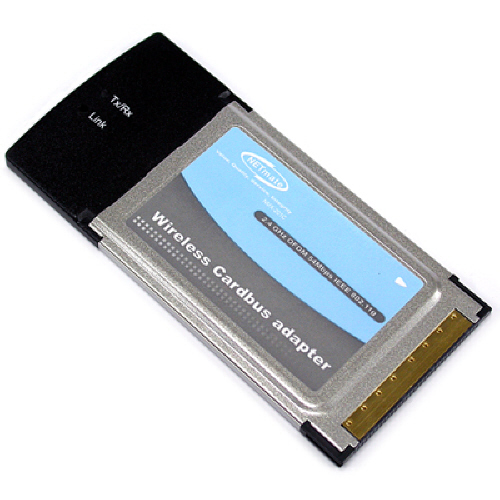

- 802.11g 54Mbps Wireless LAN PC Card
- IEEE-802.11g & IEEE-802.11b Standards
- Supports WPA, WEP and AES security
- Supports Windows 98SE/Me/2000/XP
- Supports 32bit Cardbus Interface
|
|
| |
- Works with both IEEE 802.11b and IEEE
802.11g products
- High-speed transfer data rate - up to
54Mbps
- High throughput supports multi-media
data bandwidth requirement
- Supports 64/128-bit WEP, WPA (TKIP with
IEEE 802.1x) and AES functions
for high level of security
- Automatic fallback increases data
security and reliability
- Supports the most popular operating
system: Windows 98SE/Me/2000/XP
- Supports 32-bit Cardbus interface
|
|
NO. |
NMX-201C |
|
Standards |
IEEE-802.11g / IEE-802.11b |
|
Frequency Band |
2.4000~2.4835GHz (Industrial Scientific
Medical Band) |
|
Modulation |
OFDM with BPSK, QPSK, 16QAM, 64QAM (11g)
BPSK, QPSK, CCK (11b) |
|
Data Rate |
54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto
fallback |
|
Security |
64/128/152-bit WEP Data Encryption, WPA (TKIP
with IEEE 802.1x)
and AES |
|
Antenna |
Printed Antenna with Diversity System |
|
Power Consumption |
TX : 350mA, RX : 250mA |
|
Receive Sensitivity |
54Mbps OFDM, 10% PER, -72dBm
11Mbps CCK, 8% PER, -85dBm
1Mbps BPSK, 8% PER, -93dBm |
|
Dimension |
8(H) x 118(W) x 54(D) mm |
|
Transmit Power |
16dBm ~ 18dBm |
|
Temperature |
0~50 ° C |
|
Humidity |
Max to 95% (Non-Condensing) |
|
Certification |
FCC Class B, CE Mark |
|
| |
▣ 구성물
- NMX-201C CARD BUS
- 드라이브 CD
- 설치가이드 (영문)
- 사용설명서 (한글)
|
|
|
 |
